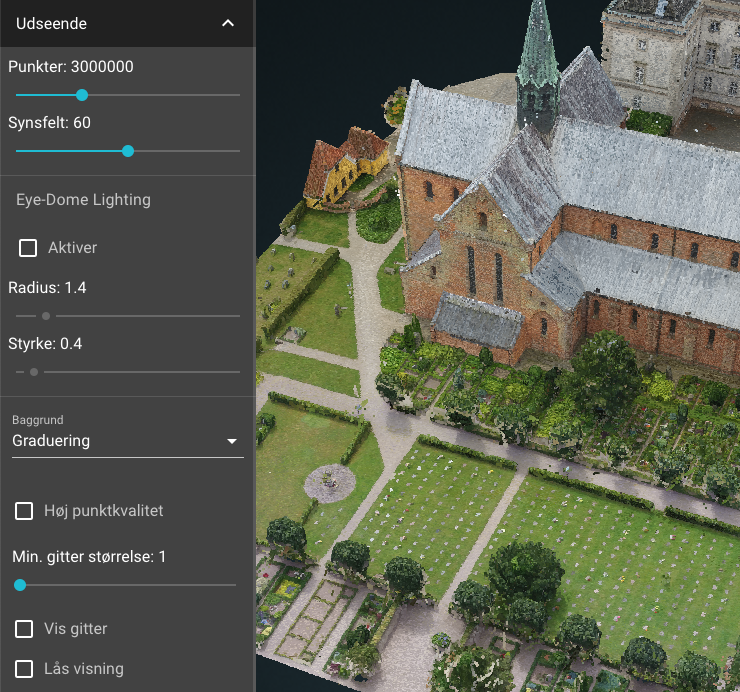

Appearance

Points

The maximum number of points that can be displayed can be changed by dragging the slider.

Field of view

The size of the field of view can be changed by dragging the slider.

Dome lighting

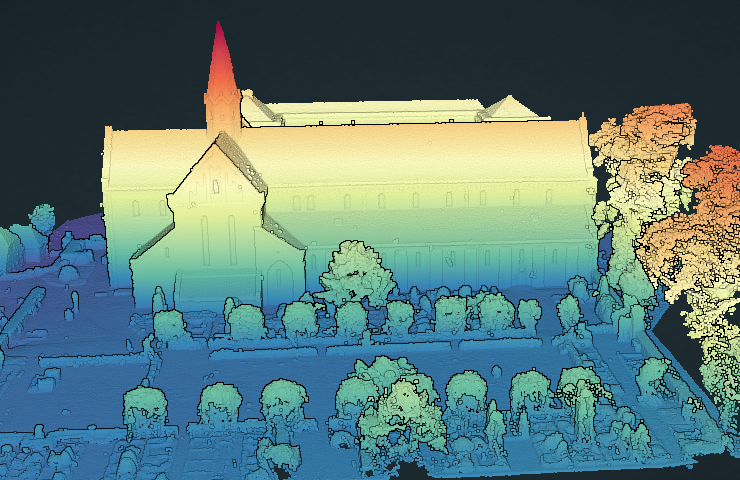

Dome lighting can improve the depth vision of a pointcloud and therefore improve data interpretation. Areas become darker where the depth changes markedly. This makes it easier to see the boundaries and details of the objects.

Deactivated

Activated

Radius

Radius increases the thickness of the point contour.

Strength

Strength increases the Strength of shadows, which results in a darker image.

Background

The background of the pointcloud view can be changed to the following:

• Skybox
• Gradient
• Black
• White
• None

High Splat Quality

Points can be displayed with low or high quality. At high quality, the display becomes more accurate, but it causes the solution to react more slowly.

Minimum Grid Size

In order for a point cloud to appear quickly, it is divided into a three-dimensional grid. When navigating in the point cloud, only the points that are within the visible grid are displayed. It can be specified how large a grid division must be before its points are displayed.

Show Grid

Displays the grid layout in the pointcloud view.

Lock View

When lock view is turned on, subsequent changes in grid size are ignored.
